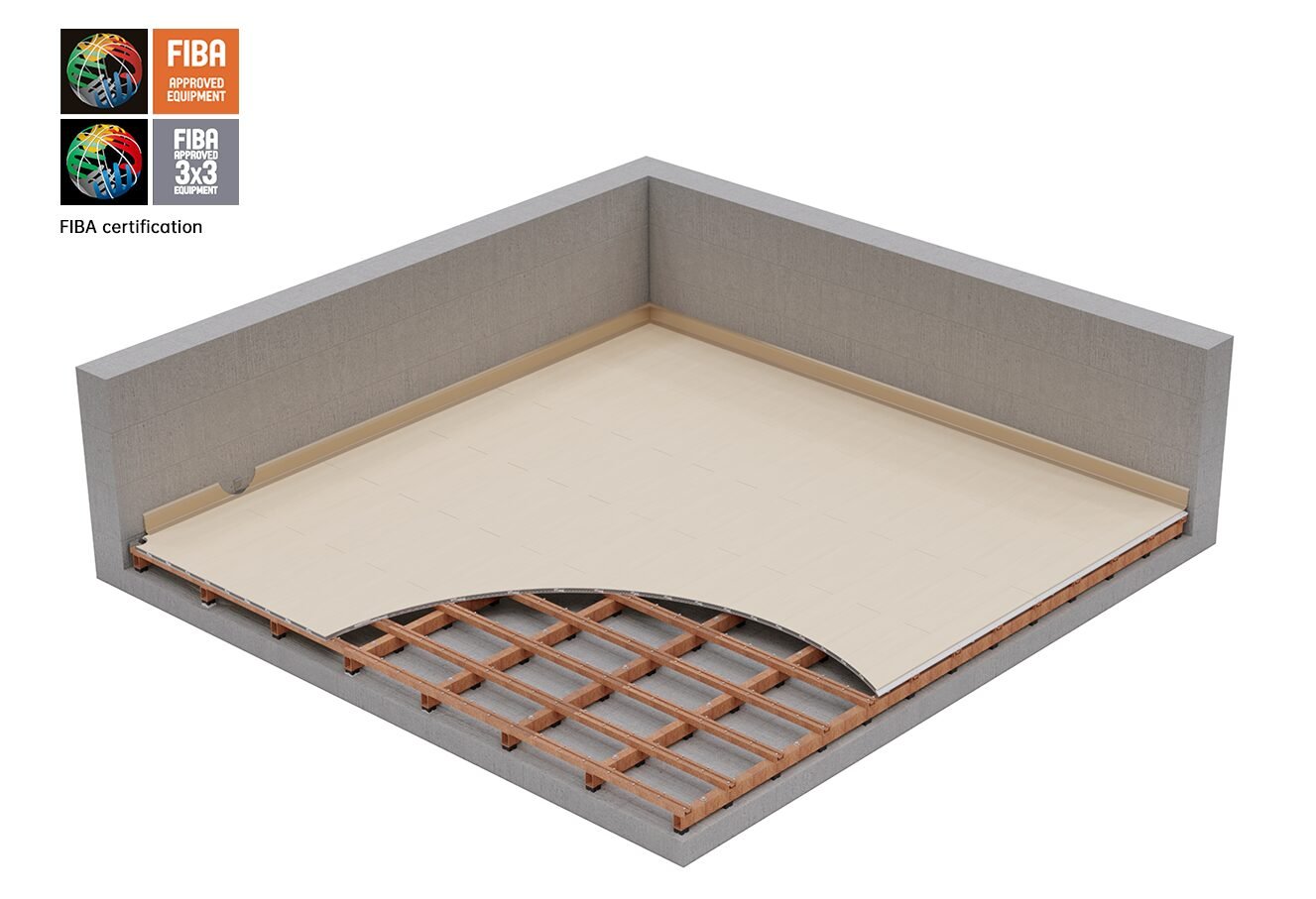

Biomass Macwood Fixed Flooring
Biomass Macwood
Fixed Flooring
Macwood Fixed Flooring System is designed specifically toreplace high-end hardwood sports flooring and provides ahardwood look and feel, enhanced athletic performance, anda durable and reliable indoor flooring system that is resistantto extreme weather conditions.
Indoor and Ourtdoor Biomass Panel
Double Keel
Sound insulation Cotton (for indoor court)
Rubber Soft Foot Mat
1mm、2mm、3mm、
5mm、10mm、15mm
Performance indicators Are Set To The FlBA Standard
Performance Parameter | FIBA Standard | Pass/Fail |
---|---|---|
Impact Absorption | 45%-75% | Pass |
Vertical Deformation | 1.5mm-5.0mm | Pass |
Rebound Rate | ≥90% | Pass |
Slip Resistance | ≥80≤10 | Pass |
Wear Resistance | ≤1000mg | Pass |
Adapt To Multiple Scenarios
Through the innovation of polymer bio based composite materials and structures,we have broken through the traditional dependence of solid wood sports flooring on indoor constant temperature and humidity environments, and taken the lead in achievina ful adaptation to indoor and outdoor sports scenes.
Macwood Sports Flooring VS Hardwood Sports Flooring
Macwood Flooring Systems | Prevailing Hardwood Flooring Brands | |
---|---|---|
Performance and Durability Comparison | ||
Area-elastic | ||
FIBA-Approved Performance | ||
Waterproof | ||
Humidity-proof | ||
Insectproof | ||
Mildewproof | ||
Heavy Load | ||
Outdoor Application | ||
Life-Cycle Cost Comparsion | ||
Initial Construction Cost | Medium-High | High |
Maintenance Cost | Low | High |
Damage Risk | Low | High |
Application Case Of Biomass Macwood Fixed Flooring
Learn More About Biomass Macwood Fixed Flooring
Overall height of system: | 132mm |
Surface treatment: | FlBA-certified oil/water based varnish |
Floor strip material: | Vmkon Reinforced Premofiber |
Floor strip size: | 125mm * 22mm / 25mm |
Noise reduction membrane layer: | Made of EVA |
Sleeper material: | Glass fiber reinforced plastic |
Upper sleeper size: | 45mm * 30mm * 30mm |
Down sleeper size: | 60mm *40mm * 30mm |
Rubber pads size: | 40mm * 40mm * 20mm |

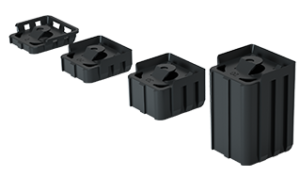

Thickness range of Plastic Leveling Adjuster: | 1mm, 2mm, 3mm, 5mm,10mm,15mm |
Force Reduction (Area Elastic): | 61% |
Vertical Deformation (Area Elastic): | 2.7mm |
Ball Rebound: | 95% |
Slip Resistance: | 100 |
Resistance to Wear: | 120mg |
Rolling Load: | 0.30mm |
