Where Championship-Level Play Meets Structural Precision
VMKON‘s Maple Hardwood Sports Flooring provides a professional-grade court surface for gyms, arenas, and multi-sport facilities. Made from premium maple, it offers exceptional shock absorption, reliable traction, and unmatched durability to withstand high-intensity play. The natural maple grain adds a refined, elegant look that instantly elevates any venue.
Ideal for basketball, volleyball, and multi-purpose courts. It is easy to maintain and built to last, performing reliably from professional venues to colleges and school gymnasiums. Choose maple for championship-level performance and timeless aesthetics.| PERFORMANCE | According to EN 14904 |
| USE | World-Class Basketball Venues Indoor Sports Facilities |
| FLOORBOARD TYPE | Maple | 22±1mm Thickness |

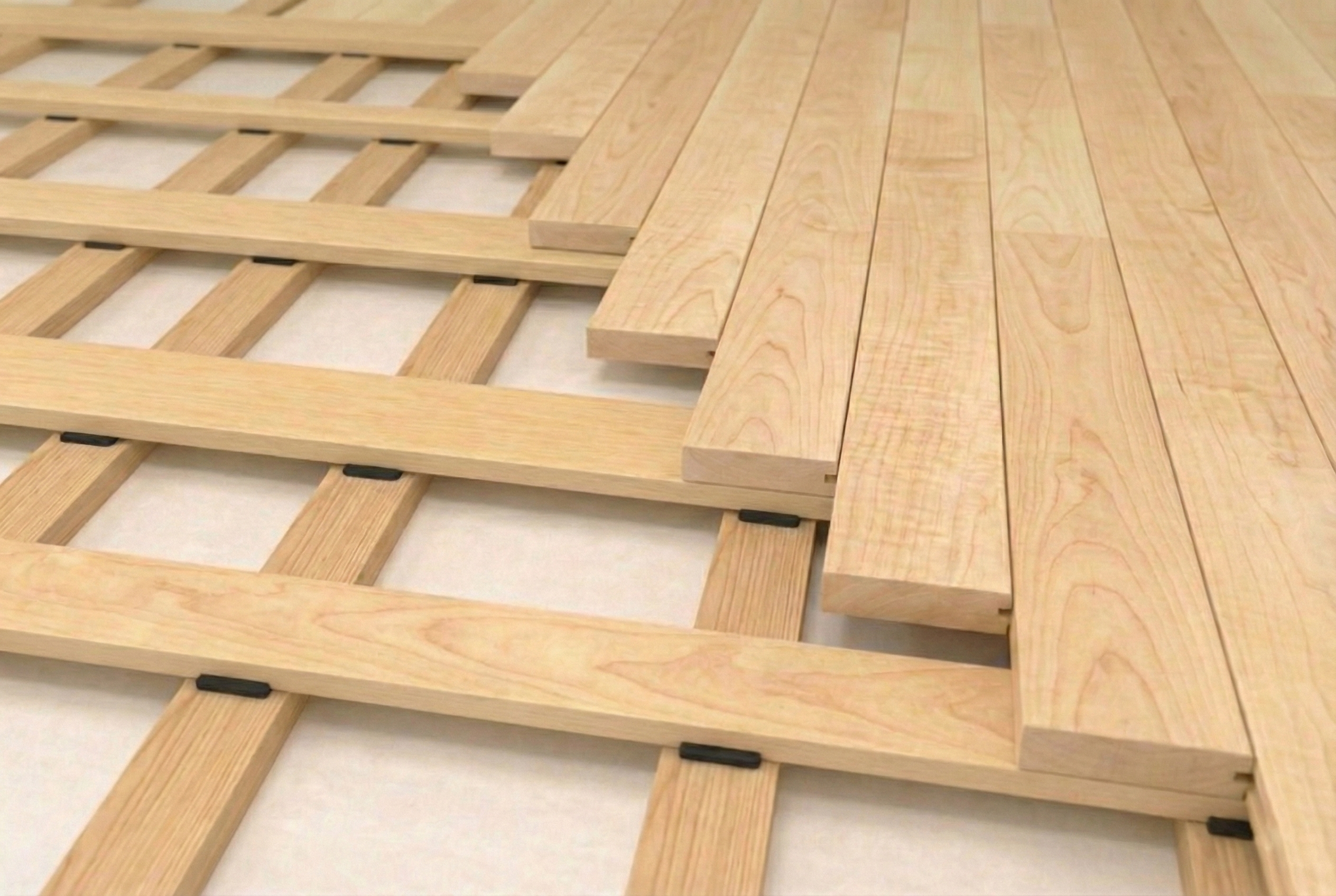

| SUBCONSTRUCTION | Resilient pads + LVL/wood joists + load-distribution plywood layer |
| REQUIRED SUBFLOOR | Even |
| FIBA Certification | ✔ |
| LIFESPAN | 10–15 years under typical sports hall usage |
| REQUIREMENTS EN 14904:A4 | TEST RESULTS | |
|---|---|---|
| SHOCK ABSORPTION | ≥ 55 < 75 % | 57% |
| VERTICAL DEFORMATION | ≥ 2.3 < 5.0 mm | 2.7 mm |
| BALL BOUNCE | ≥ 90 % | 94% mm |
| FRICTION | ≥ 80 ≤ 110 | 95 |
| WEAR RESISTANCE | ≤ 80 mg | 33 mg |
| ROLLING LOAD RESISTANCE | ≤ 0.50 mm | 0.30 mm |
VMKON maple hardwood flooring delivers 57% shock absorption (Grade-1 requirement: 50–75%), balancing cushioning and stability for high-impact activities. This helps reduce impact stress during jumps and fast transitions, improving athlete comfort and safety while keeping the court responsive(basketball, badminton, etc).
The system is designed for demanding daily use. It shows strong resistance to wear and deformation, with 33 mg wear loss (requirement: ≤ 80 mg) and 0.30 mm indentation under rolling load testing(requirement: ≤ 0.50 mm), no visible damage observed, supporting reliable performance under foot traffic and equipment movement.
Playability meets competition needs with 94% ball rebound(requirement: ≥ 93%), providing consistent and predictable response. The floor also achieves a slip resistance value of 95 (requirement: 80–110), supporting controlled movement for quick starts, stops, and direction changes.
Enhancing both performance and aesthetics, the surface features a refined low-gloss finish with 27% gloss at 85° (recommended: ≤45%). The reduced gloss helps minimize glare and improve visual comfort under typical indoor lighting, while maintaining a clean, modern court appearance.
