Engineered for stability, resilience, and cost-effective performance in modern sports venues

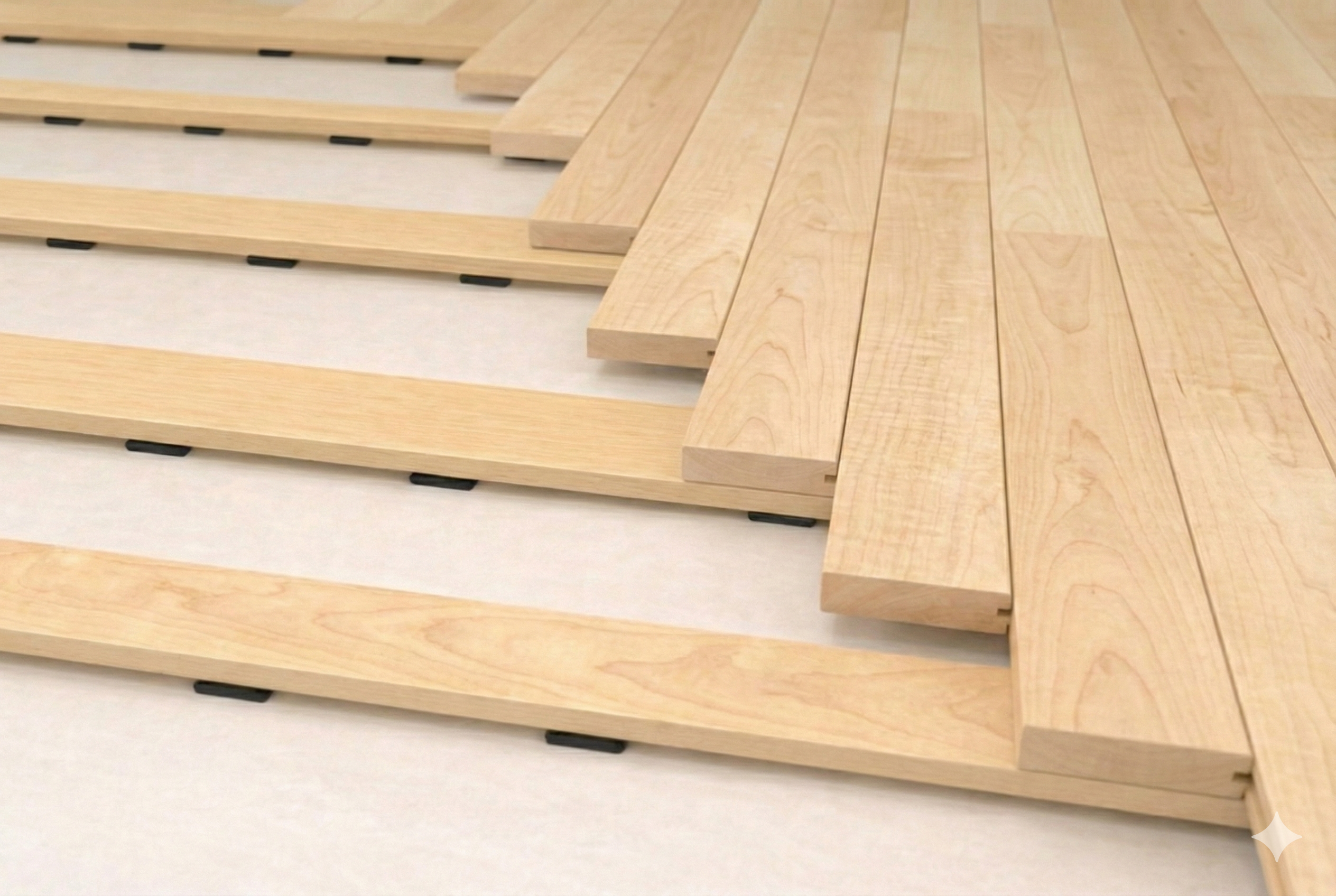

VMKON’s Maple Hardwood Single Keel System is a high-performance sports flooring solution that delivers professional playability with a streamlined single-joist structure. Built with premium hard maple surface boards and an engineered keel layout, it provides consistent shock absorption, reliable ball rebound, and long-term stability for daily athletic use.
Its simplified single-keel design improves material efficiency and reduces installation complexity, helping control project costs while maintaining performance. This makes it well suited for school gymnasiums, training facilities, fitness centers, and multi-purpose sports halls.
| PERFORMANCE | According to EN 14904 |
| USE | World-Class Basketball Venues Indoor Sports Facilities |
| FLOORBOARD TYPE | Maple | 22±1mm Thickness |
| SUBCONSTRUCTION | Resilient pads + LVL/wood joists + load-distribution plywood layer |
| REQUIRED SUBFLOOR | Even |
| FIBA Certification | ✔ |
| LIFESPAN | 10–15 years under typical sports hall usage |
| REQUIREMENTS EN 14904:A4 | TEST RESULTS | |
|---|---|---|
| SHOCK ABSORPTION | ≥ 55 < 75 % | 57% |
| VERTICAL DEFORMATION | ≥ 2.3 < 5.0 mm | 2.7 mm |
| BALL BOUNCE | ≥ 90 % | 94% mm |
| FRICTION | ≥ 80 ≤ 110 | 95 |
| WEAR RESISTANCE | ≤ 80 mg | 33 mg |
| ROLLING LOAD RESISTANCE | ≤ 0.50 mm | 0.30 mm |
VMKON maple hardwood flooring delivers 57% shock absorption (Grade-1 requirement: 50–75%), balancing cushioning and stability for high-impact activities. This helps reduce impact stress during jumps and fast transitions, improving athlete comfort and safety while keeping the court responsive(basketball, badminton, etc).
The system is designed for demanding daily use. It shows strong resistance to wear and deformation, with 33 mg wear loss (requirement: ≤ 80 mg) and 0.30 mm indentation under rolling load testing(requirement: ≤ 0.50 mm), no visible damage observed, supporting reliable performance under foot traffic and equipment movement.
Playability meets competition needs with 94% ball rebound(requirement: ≥ 93%), providing consistent and predictable response. The floor also achieves a slip resistance value of 95 (requirement: 80–110), supporting controlled movement for quick starts, stops, and direction changes.
Enhancing both performance and aesthetics, the surface features a refined low-gloss finish with 27% gloss at 85° (recommended: ≤45%). The reduced gloss helps minimize glare and improve visual comfort under typical indoor lighting, while maintaining a clean, modern court appearance.
