LD-22H: 87mm system height
Solid-Fixed Birch Pro system with a 22mm birch wood panel and a floating resilient sleeper design.
Professional indoor court systems
Fixed hardwood flooring for indoor courts
Choose between VMKON’s Solid-Fixed Birch and Engineered Wood systems for stable indoor sports flooring in schools, training facilities and multi-sport venues.
Discuss your court type, size and performance requirements with a VMKON flooring specialist.
FIBA / EN 14904 systems
22mm solid birch panel
87mm and 92mm system options
Indoor fixed-floor applications
Hardwood performance, engineered
Two fixed systems, one professional court standard
LD-22H combines a 22mm solid birch panel with an LVL elastic dual-sleeper structure in an 87mm system. It is FIBA and EN 14904 compliant, with a stated 15–20 year lifespan.
LD-18F is a 92mm engineered-wood system with a double-keel elastic structure, built-in 5mm soft rubber pad and LVL load-bearing components.
System 01 · Solid-Fixed Birch Pro System Floor
LD-22H Solid-Fixed Birch System
A floating resilient fixed-floor system for indoor sports venues. The supplied specification identifies a high-profile, moisture-proof structure featuring multi-layer hardwood sleepers.
System specification
- Model
- LD-22H
- System type
- Floating resilient
- System height
- 87mm
- Panel material
- 22mm birch wood
- Sleeper material
- LVL elastic dual sleepers
- Certification
- FIBA, EN 14904
- Documented lifespan
- 15–20 years
- Sleeper protection
- Moisture and corrosion protection
System layers
| Top surface | 22mm solid hardwood panel |
|---|---|
| Loading board | 12mm loading board |
| Sleeper system | 35mm dual sleepers system |
| Shock absorption | 18mm patented shock absorption pad |
Performance & system stability
- Floating resilient sleeper design.
- Excellent ball bounce.
- FIBA and EN compliant.
- High-profile system height.
- Moisture-proof system featuring multi-layer hardwood sleepers.
LD-22H advantages
- Pro safety protection: Excellent shock absorption performance helps mitigate impact forces on athletes and reduce the risk of sports injuries.
- Superior athletic performance: Stable, precise ball rebound and optimal energy return meet international professional competition standards.
- LVL sleepers: High strength, good load-bearing capacity, resistance to deformation, corrosion, moisture and weather.
- Parallel double-sleeper structure: Helps avoid hard points at crossing areas, distributes force more evenly and supports better shock absorption and athlete protection.
- Anti-slip and stability: A professional anti-slip surface provides a uniform, appropriate friction coefficient for stability and agility.
- Comfortable underfoot feel: Natural temperature and humidity regulation with a skin-friendly feel for more comfortable contact.
Why hardwood from VMKON
System details that matter on court
Source specifications from the LD-22H Solid-Fixed Birch and LD-18F Engineered Wood system data sheets.
LVL elastic dual sleepers
Parallel double sleepers help distribute force more evenly and avoid hard points at crossing areas.
Birch system certifications
LD-22H is listed as FIBA and EN 14904 compliant, with moisture- and corrosion-protection in its sleeper structure.
LD-18F: 92mm system height
Engineered Wood system using an 18 × 167 × 1215mm top panel, 12mm loading panel and LVL double-keel structure.
Long-term PVC-cover ready
The engineered system’s multi-layer construction is specified for dimensional stability when PVC sports mats are laid over it for extended periods.
Lower-maintenance operation
LD-18F is specified without regular sanding and refinishing, helping reduce maintenance-related court closures.
System 02 · Engineered Wood Fixed System
LD-18F Engineered Wood System
Engineered for stability and built for performance. The multi-layer construction is specified to reduce expansion and contraction from humidity and temperature change.
System components
| Top panel material | Engineered wood |
|---|---|
| Top panel size | 18 × 167 × 1215mm |
| Loading panel size | 12 × 1220 × 2440mm |
| Keel material | LVL (Laminated Veneer Lumber) |
| Keel structure | Double-keel elastic structure with built-in 5mm soft rubber pad |
| Keel size | 15 × 70mm + 5mm + 15 × 70mm |
| Keel height | 35mm |
| Leveling adjustment pad | 9mm |
| Shock-absorbing pad | 18 × 53 × 68mm |
| System height | 92mm |
Engineered for stability, built for performance
- High stability & moisture resistance: Cross-laminated multi-layer construction reduces expansion and contraction caused by changes in humidity and temperature.
- Seamless & cleaner surface: Tight panel joints create a cleaner, more attractive surface and make daily cleaning easier.
- Better graphic appearance: Custom court graphics and patterns can achieve a cleaner, more refined finish than traditional solid hardwood.
- Ideal for long-term PVC covering: Greater dimensional stability when PVC sports mats are laid over the floor for extended periods, with less risk of deformation.
- No regular sanding & refinishing: Helps reduce maintenance-related court closures and minimizes downtime.
- Lower maintenance costs: Requires significantly less long-term maintenance than traditional solid hardwood flooring.
Referenced standards
- Shock absorption
- EN 14808:2005 / FIBA Level 1
- Vertical deformation
- EN 14809:2005 / FIBA Level 1
- Vertical ball behaviour
- EN 12235:2013 / FIBA Level 1
- Friction
- EN 13036-4:2011 / FIBA Level 1
- Wear resistance
- EN ISO 5470-1 / FIBA Level 1
- Indentation resistance
- EN 1516 / FIBA Level 1
- Specular gloss
- EN ISO 2813 / FIBA Level 1
- Rolling load
- EN 1569 / FIBA Level 1
- Referenced body
- BWF
One surface, multiple sports
Specified for indoor training facilities
Documented applications include school gymnasiums, community centers, fitness centers, and sports training courts.
School gymnasiums
Community centers
Fitness centers
Basketball, badminton & pickleball
Sports arenas
LD-18F technical data
Engineered Wood system performance
LD-18F values issued in accordance with EN 14904, FIBA and BWF standards. Requirements and values below are reproduced from the supplied technical datasheet.
| Property | Requirement | LD-18F value |
|---|---|---|
| Shock absorption | 25–75% | 65% |
| Vertical deformation | <5mm | 2.7mm |
| Vertical ball behaviour | >90% / >93% | 94% |
| Friction | 80–110 | 96 |
| Resistance to wear | <0.08g | 0.034g |
| Resistance to indentation | ≤0.5mm after 24 hours | 0.0mm |
| Specular gloss | ≤10 unit variance | 7 GU |
| Rolling load | <0.5 | 0.40mm |
| Rolling load damage | None | No damage |
VMKON reserves the right to modify product characteristics at any time to improve technical performance.
Engineered Wood court graphics
Custom court graphics and patterns
The LD-18F technical datasheet highlights custom court graphics and patterns as a way to create a cleaner, more refined finish than traditional solid hardwood. The supplied examples show four court-design directions.
Discuss your court design
Solid-Fixed Birch applications

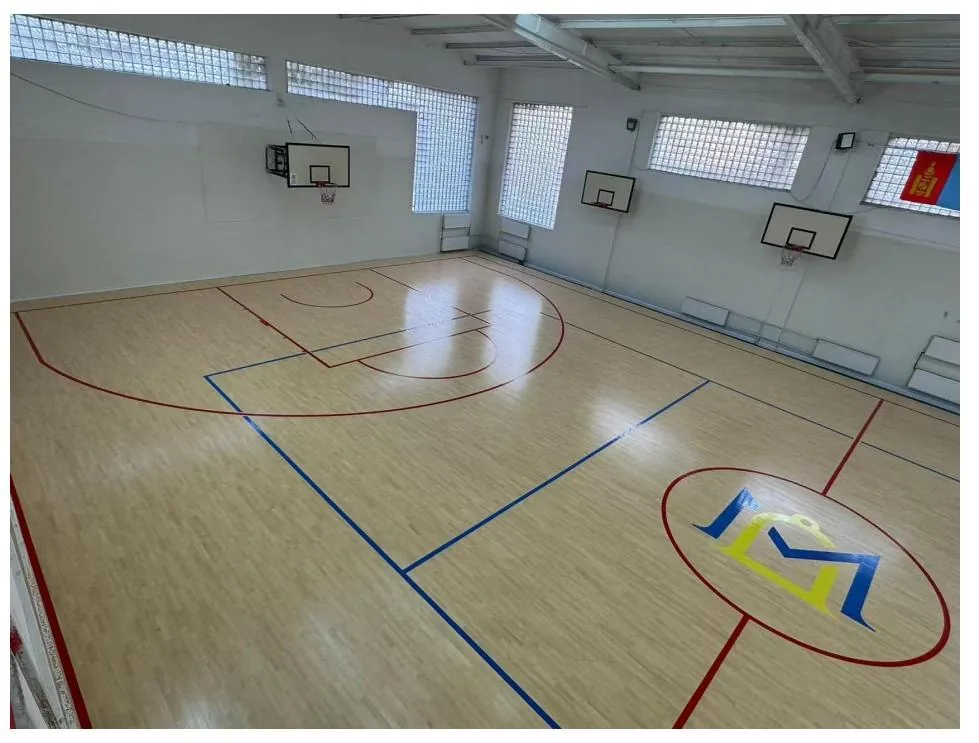

Indoor training facility applications
The LD-22H data sheet lists indoor training facilities, school gymnasiums, community centers, fitness centers and training courts for basketball, badminton and pickleball.
